Natural Gas SMR Hydrogen Production

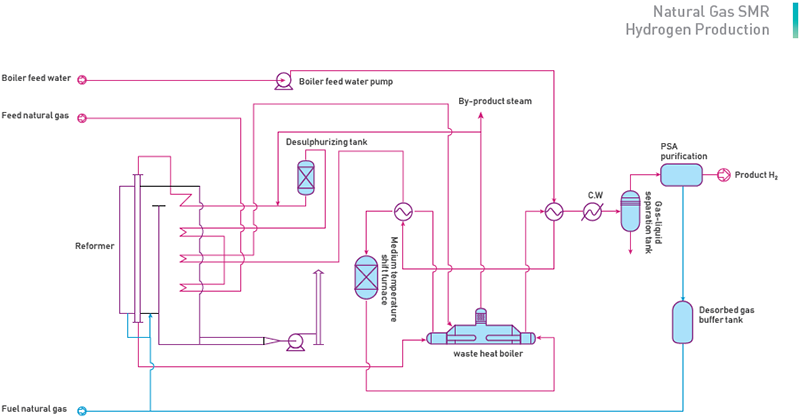

Natural Gas SMR Hydrogen Production Hydrogen production from natural gas is to perform the chemical reaction of pressurized and desulfurized natural gas and steam in a special reformer filling with catalyst and generate the reforming gas with H₂,CO₂ and CO, convert the CO in the converted gases to CO₂ and then extract qualified H₂ from the converted gases by pressure swing adsorption (PSA).
Capacity: 10~50000Nm³/h | H₂ Purity: 99%~99.999%

Reaction Principle
CH₄+H₂O→3H₂+CO-Q
CO+H₂O→H₂+CO₂+Q

Technical Features
● Mature technology, safe and reliable
● Reliable and practical operation, high automation
● Cheap operation cost and short recovery period.
● Reduced fuel consumption and exhaust emission by PSA desorbed gas burn-backing
